Home» Products» Total Reflector

Total Reflector (Reflective Laser Mirror for Laser Marking Machine, Laser Engraving Machine and Laser Cutting Machine)

Country of Origin:China
Product Standard:Q/EFR/J 1.1-2012
Category:Optical lens, optical accessories
Application:laser cutting, laser engraving, laser marking and other laser machining in the industries of advertising, packaging, craftwork processing, decorative building materials, clothing, and more.

Overview:Total reflectors are an important element in laser transmission systems, as they cooperate with laser focus lenses to form a complete optical path in the CO2 Laser device. The reflective mirror saves space, helps reduce light loss, and reserves laser power. It is a great optical accessory for laser equipment such as laser cutting machines, laser engraving machines and laser marking machines.

EFR is a specialist optical lens manufacturer in China that provides total reflectors including Mo total reflectors and Si total reflectors.

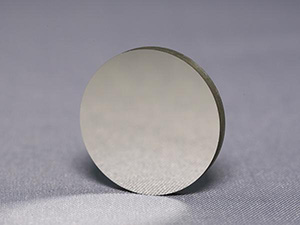

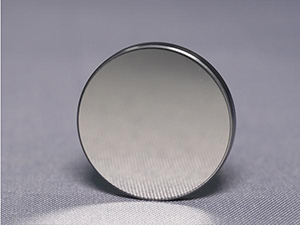

Mo Total ReflectorTotal reflectors generally use Mo and Si as substrates. The Mo total reflector is typically uncoated and can withstand high laser power to meet the demanding requirements for working environments. It can be scrubbed, and has a long service life, but a low reflectivity.

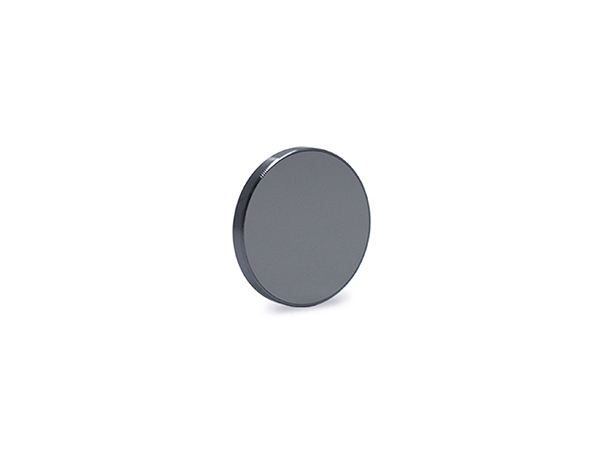

Si Total ReflectorThe Si total reflector has great thermo-optical properties, and is currently the most commonly used reflection lens for laser equipment. This new optical mirror uses single crystal Si as a substrate, and is coated with a dielectric material. Due to that, it effectively reflects the CO2 Laser in a high reflective rate. Si total reflectors can be scrubbed and feature a light weight and excellent resistance to oxidation.

Processing Requirement

Technical Parameter Value
Geometric Tolerance 0/-0.1mm
Thickness Tolerance ±0.1mm
Surface Finish S1: 40-20,
S2: accurate grinding
Parallelism < 1'
Effective Aperture > 90%
Bevelling < 0.2 ×45°
Coating Film High-reflective film
