Country of Origin:China
Product Standard:Q/EFR/J 1.1-2012
Category:Electronic device, mechanical and electronic products
Application:EFR's CO2 Laser power supply can be used together with CO2 Laser tubes. With different types and models available, this laser equipment accessory can match laser tubes with different power levels.
The safe and reliable laser power supply can be connected directly to the laser cutting machine, laser engraving machine, and other laser equipment to achieve precision cutting and engraving on acrylic plastic, cloth, rubber plates, and leather products.
Parameters
Item |
|
|
|
|
Input | Input voltage | AC90-250V | ||
AC frequency | 47---440Hz | |||
Max input power | 600W | 650W | 900W | |
Max input current (when 90V input) | 6A | 8A | 10A | |
Output | Max output voltage | 40KV | 45KV | 55KV |
Max output current | 28mA | 32mA | 38mA | |
Efficiency | ≥90% (full load) | |||
MTBF(mean time between failure) | ≥10000hours | |||
Response speed | ≤1mS(the time from the signal is given to output current reaches 90% of set current ) | |||
Withstand voltage | Input-output, input-shell: AC1500V 10mA 60s | |||
Working environment | Temperature (-10~40)℃, relative humidity: ≤90% | |||
Cooling | Force air cooling | |||
Matching Laser Tube Power | 50-80W | 80-120W | 130-180W | |
Dimension | L*W*H(mm) | 235*144*104 | 278*144*104 | 330*144*104 |
Weight | Net weight(KG) | 2.15kg | 2.45kg | 3.2kg |
Color | Silver grey |

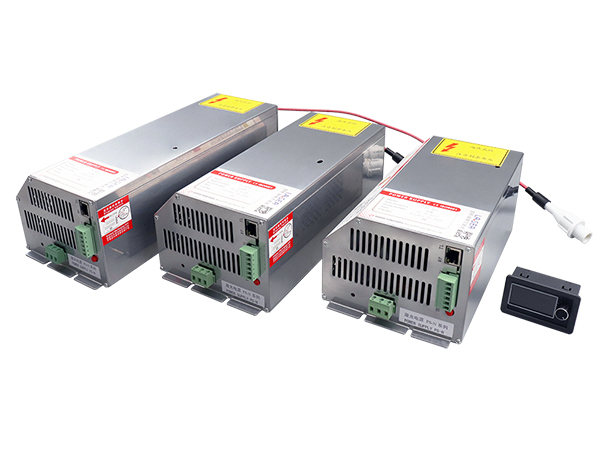

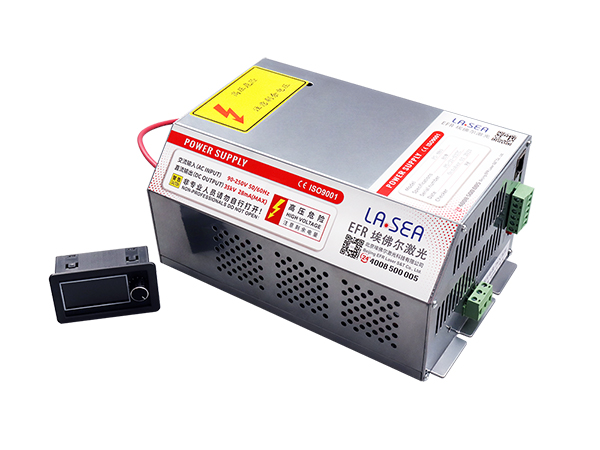

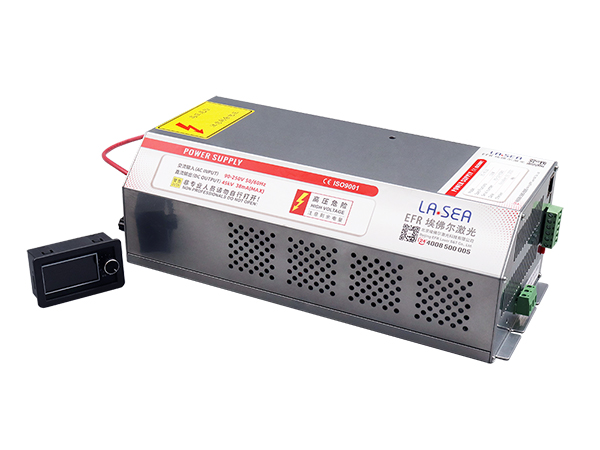

Product Showcase
Features
Great Compatibility:Characterized by a high efficiency, frequency, and speed, the PS-N series CO2 Laser power supply is a matched power supply for CO2 Laser devices. With the great compatibility, it can easily and directly be connected to laser devices without a ballast.
High Efficiency:The laser equipment power supply features a high power transfer efficiency and can facilitate the start of the CO2 Laser tube, enabling it to work properly, and ensure a prolonged service life.
Dual-Use Interface:The CO2 Laser power supply is equipped with a dual-use interface, which can either be used to achieve closed-loop control, or to test the actual operating current of the laser tube.
Open Circuit Protection:The CO2 Laser power supply for optical processing machinery can achieve open circuit protection. If the housing has a safe ground connection, the laser power supply can function on an open circuit for a short amount of time. This protection helps extend the service life of the laser power supply.
Specification
Name | Model | Dimension (L×W×H) (mm) | Matched CO2 Laser Tube | Warranty |
CO2 Laser Power Supply | PS-N80 | 250×139×107 | 1200CL, F2, ZS-1250, 1600CL | 18 Months |
PS-N100 | 285×139×107 | F4, ZS-1450 | 18 Months | |
PS-N130-150 | 352×139×107 | F6, F8, F10, ZS-1650, ZS-1850, ZS-2050 | 18 Months |
Properties
Thanks to a zero-current half bridge soft-switching current, the CO2 Laser power supply has a high efficiency, short response time and easy interface control. It responds to signals sent by the TTL high/low level switch, and controls the switch on/off laser devices.
This laser power device is also equipped with a protection switch, which can effectively detect abnormal water and air ventilation. It can receive 0-5V analog signals, and a PWM signal to regulate laser power.
Aging Test:Each laser tube power supply must undergo a 10 hour, full-load operation under a 65℃ temperature. They must also undergo on/off switch tests every 7 seconds, and must do so 300 times.
Package Size
Type of Power Supply | Quantity of Power Supply | Product Net Weight (Kg) | Carton Capacity | Carton Dimension (L×W×H) | Product Rough Weight (Kg) |
60/80W | 1 | 2.12kg | 1 small set | 34.5×15×12 | 2.6kg |
1 | 2.12kg | 1 large set | 32×20×20 | 2.9kg | |
2 | 4.24kg | 2 sets | 40×40×19 | 5.0kg | |
4 | 8.48kg | 4 sets | 40×40×31 | 9.8kg | |
100W | 1 | 2.45kg | 1 small set | 34.5×15×12 | 2.95kg |
1 | 2.45kg | 1 large set | 32×20×20 | 3.3kg | |
2 | 4.9kg | 2 sets | 40×40×19 | 5.75kg | |
4 | 9.8kg | 4 sets | 40×40×31 | 11.2kg | |
130/150W | 1 | 3.2kg | 1 small set | 41×15×12 | 3.5kg |
1 | 3.2kg | 1 large set | 39.5×20×20 | 3.9kg | |
2 | 6.35kg | 2 sets | 47×40×19 | 7.85kg | |
4 | 12.5kg | 4 sets | 47×40×32 | 14.5kg | |
60W Black | 1 | ||||
2 | 2 sets | 34.5×15×12 | |||
4 | 4 sets | 40×40×19 | |||
6 | 6 sets | 47×40×32 | |||
80W Black | 1 | 3kg | |||
2 | 6kg | 2 sets | 40×40×19 | 7.2kg | |
4 | 12kg | 4 sets | 47×40×32 | 13.3kg | |
130/150W Black | 1 | 4.6kg | 1 large set | 47×39×19 | 5.35kg |
2 | 9.2kg | 2 sets | 47×40×32 | 10.5kg | |
4 | 18.4kg | 4 sets | 47×40×32 | 19.89kg |
Note
1. Carton dimension error: ±1cm
2. Rough weight error: ±1 kg
